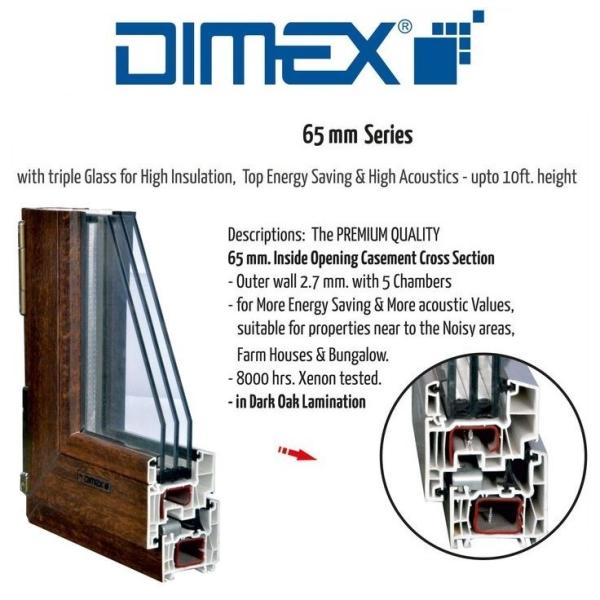

DIMEX L65 Construction Casement Window Profiles 2.5 Mm Wall Thickness

The Superiority points of DIMEX UPVC Window profiles:

• With 2.5 mm wall thickness.
• High UV Retardant with 8 Parts of Titanium Dioxide.
• 8000 hours Xenon Tested.
• Eco Friendly.
• Fire Resistant.
• Sound Proof.
• Energy Saving.
• Termite Proof.
• Water Resistant.
• Burglar Proof.
• 30 years DIMEX Own warranty against Discoloration & against Brittleness.
• These economic & lightweight advantages make DIMEX Premium windows most competitive in Global Markets.
• They are especially launched for Big Projects, where the Quality & prices can be assured.
• They are a complete system to make all kind of project – Fixed, Sliding and Casement Windows & Doors.
• In this system we have separate window & door profiles as compared to other brand profiles. Who use the same window profiles for doors.
• Being A German Brand Popular in your local Markets for over 20 years, they provide more security to the end customer, and are more reliable for the Window makers.

Features of L65 Window Profiles & Systems:

(1)System depth 65mm – 5 Chambers

(2)System Uf 0.90~1.10 W/㎡·K

(3)Air tightness Grade 8 [ q1 ≤0.5m3/(m·h); q2 ≤1.5m3/(㎡·h) ]

(4)Water tightness Gr.6 (∆P ≥ 700)

(5)Wind load resistance performance: above Grade 8 (P3 ≥ 4.5 KPa)

(6)Sound insulation Gr.5 (Rw + Ctr ≥ 400dB; Rw + C ≥ 400dB)

(7)Heat preservation Gr.10 (K< 1.1 W/㎡·K)

① Excellent air tightness and thermal insulation performance

②Advanced "hidden hinges" can be assembled

③Fire and flame retardant function

④Screw socket transom(mullion)

⑤The hardware is versatile and easy to select and assemble.

⑥Glazing wideth range from 30mm to 51mm

Color Options:

A. Standard White (High intensity uv protection).

B. Full Color (Homogeneous).

C. Laminated.

2.5 Mm Casement Window Profiles

UPVC Casement Window Profiles

Window UPVC Plastic Profiles
